Brand Name : | YNF/Y&F |
Model Number : | GR100 |
Price : | USD 20.78 Piece |
Payment Terms : | T/T, Western Union, MoneyGram,Paypal |
Supply Ability : | 3000Pieces Per Month |
Delivery Time : | Within 3-7 days after payment |
MOQ : | 1 |
Original Natural Rubber Red Color Jaw Spider Coupling Size 224*113*38
1.What is Jaw Spider Coupling?
Spider power transmission couplings are torsionally flexible shaft
couplings, the operating characteristics of which are two hubs with
concave claws, transmitting the torque by meshing with an elastic
involute gear ring.
The spider coupling concept gives a reliable, smooth power
transmission without torsional oscillation / vibration and so
protects the connected machinery.
Due to the complete flexibility and ductility of the elastomer
ring, it compensates for parallel and angular displacements as well
as to absorb longitudinal movement of the shafts.
2.Specifiion:
Brand Name | YNF/Y&F |
Property | High/low temperature resistance, oil and fuel resistance, weathering resistance, O zone resistance etc. |
Shape | According to your requirement. |
Color | Red color |
Material | Jaw,Spider |
Delivery | Within 10 days after payment |
Packing | Plastic bag & carton box or according to your requirements. |
Appliion | Excavator/Digger |
3.Other products:
OD | ID | H | |
GR-28 | 65 | 30 | 20 |
GR-38 | 80 | 38 | 22 |
GR-42 | 95 | 45 | 20 |
GR-48 | 105 | 52 | 26 |
GR-55 | 120 | 60 | 27 |
GR-65 | 134 | 69 | 25 |
GR-75 | 160 | 80 | 37 |
GR-90 | 199 | 100 | 42 |
GR-100 | 224 | 113 | 38 |
GR-110 | 225 | 127 | 42.5 |
4.Related part number:
093-4195 | 099-0144 | 7Y-0609 | 099-6095 | 085-7572 |
093-5979 | 093-0278 | 095-0879 | 1R-7566 | 099-8109 |
093-5979 | 096-3973 | 099-6097 | 1R-7567 | 099-8112 |
099-0149 | 8T-0348 | 096-4212 | 1R-7568 | 099-8110 |
093-5979 | 093-0288 | 8T-4121 | 1R-7569 | 099-8111 |
094-1466 | 096-1848 | 8T-4195 | 095-0879 | 7Y-1350 |
096-3973 | 096-1848 | 8T-4136 | 094-6377 | 6W-3988 |
094-1466 | 099-5534 | 099-6094 | 099-5666 | 190-5846 |
099-6094 | 093-6867 | 1R-7565 | 8U-0950 | 6W-3990 |
7Y-1902 | 7Y-0466 | 7I-7678 | 7Y-0468 | 7Y-1904 |
7Y-0463 | 099-0149 | 7Y-1900 | 099-0149 | 7Y-0468 |
7Y-0466 | 099-0144 | 7Y-1901 | 099-0144 | 7Y-1905 |
7Y-0467 | 7Y-0466 | 7Y-1902 | 7Y-0466 | 102-3856 |
305-4950 | 8T-0348 | 7Y-1904 | 8T-0348 | 7Y-1900 |
305-4951 | 255-2940 | 248-7284 | 6I-6426 | 7Y-1901 |
305-4952 | 102-3829 | 7Y-0468 | 7Y-0468 | 7Y-1902 |
7Y-0468 | 183-8121 | 162-6288 | 7Y-1900 | 7Y-0466 |
124-1669 | 7Y-1904 | 162-6335 | 7Y-1901 | 102-3857 |
7Y-1904 | 7Y-1905 | 7Y-0466 | 7Y-1902 | 7Y-04607 |

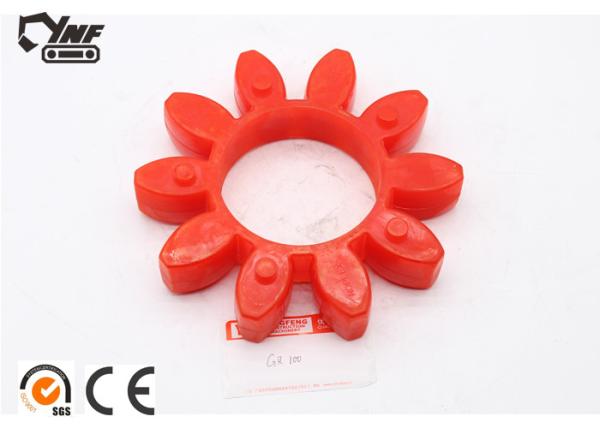

5.Product Show as below:
![]() |
