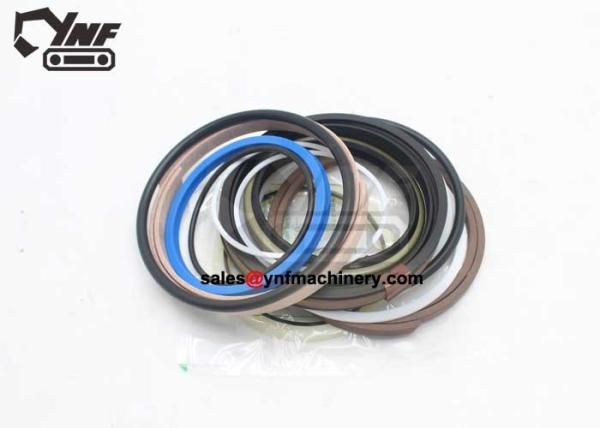

    R160-7 Arm Hydraulic Cylinder Seal Kit 31Y1-20340 Fits Hyundai R160LC-7 R160LC-7A

    Ask Lasest Price
    Brand Name : YNF
    Model Number : 31Y1-20340
    Certification : CE
    Price : contact our sales
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 5000 pcs per month
    Delivery Time : 3 working days
    • Product Details
    • Company Profile

    R160-7 Arm Hydraulic Cylinder Seal Kit 31Y1-20340 Fits Hyundai R160LC-7 R160LC-7A

    R160-7 Arm Hydraulic Cylinder Seal Kit 31Y1-20340 fits Hyundai R160LC-7 R160LC-7A

    R160-7 Arm Hydraulic Cylinder Seal Kit 31Y1-20340 Fits Hyundai R160LC-7 R160LC-7A

    Parts on group BUCKET CYLINDER:

    Pos. Part No Qty Parts name Comments
    *. 31N5-60110 [1] BUCKET CYL ASSY
    *-1. 31Y1-20280 [1] BUCKET CYL SUB ASSY WITHOUT PIPE
    1. 31Y1-20290 [1] TUBE ASSY
    2. 31Y1-04410 [1] ROD ASSY
    3. 31Y1-14700 [1] GLAND
    4. S732-080040 [1] BUSHING-DD2
    5. Y191-086000 [1] RING-SNAP
    K6. Y200-080011 [1] SEAL-ROD
    K7. Y180-080020 [1] RING-BACK UP
    K8. Y240-080011 [1] RING-BUFFER
    K9. Y110-080011 [1] WIPER-DUST
    10. Y190-094000 [1] RING-SNAP
    K11. S631-105004 [2] O-RING
    K12. S641-105002 [1] RING-BACK UP
    K13. S641-105003 [1] RING-BACK UP
    14. 31YC-21050 [1] RING-CUSHION
    15. 31Y1-03660 [1] PISTON
    K16. S632-070004 [1] O-RING
    K17. S642-070003 [2] RING-BACK UP
    K18. Y420-115000 [1] SEAL-PISTON
    K19. Y310-115000 [2] RING-WEAR
    K20. Y440-115000 [2] RING-DUST
    21. 31YC-61050 [1] NUT-LOCK
    22. S109-180604 [9] BOLT-SOCKET
    28. 31YC-11081 [2] BUSHING-PIN
    29. Y000-070200 [4] SEAL-DUST
    23. 31Y1-03670 [2] BAND ASSY
    23-1. 31Y1-03680 [1] BAND SUB ASSY
    23-2. 31YC-31060 [1] BAND
    23-3. S011-100352 [2] BOLT-HEX
    23-4. S411-100002 [2] WASHER-SPRING
    23-5. 31YC-36010 [1] CLAMP-PIPE
    23-6. S015-120502 [1] BOLT-HEX
    23-7. S411-120002 [1] WASHER-SPRING
    24. 31Y1-20320 [1] PIPE ASSY-R
    25. 31Y1-20330 [1] PIPE ASSY-B
    K26. Y171-019004 [2] O-RING
    27. S107-100454 [8] BOLT-SOCKET
    K. 31Y1-20340 [1] SEAL KIT SEE ILLUST
    Place of Origin Guangdong, China
    Brand Name YNF
    Certification ISO9001
    Model Number 31Y1-20340 HYUNDAI R160LC-7, R160LC-7A, R170W-7, R170W-7A, R180LC-7, R180LC-7A
    Minimum Order Quantity Acceptable trial order
    Price Negotiation
    Packaging Details PP bag inside, carton box outside
    Delivery Time 3-5 days after payment received(public holiday excluded)
    Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability 5000 Pieces per Week

    • MODEL APPLIED: Replacement part bucket seal kits 31Y1-20340 for Hyundai R160LC-7 excavator parts
    • MATERIAL PROPERTIES: Resistance to Friction and Wear, Weather Resistance, Oil Resistance, Non-toxic, Safety and Long-Time Uses, High and Low Pressure Resistance.
    • EASY INSTALLATION: YNF excavator seal kit parts are built to OEM specifications and testing. Match your digging excavator machine perfectly!
    • FAST DELIVERY: The R160LC-7 bucket Seal kit will be shipped from China in 1-3 days by DHL/UPS/FEDEX/TNT and 3-6 days may arrive.
    • R160LC-7, R160LC-7A Bucket Cylinder# 31N5-60110
    • 80mm Rod x 115mm Bore
    • Includes Wiper, U seal, Buffer seal and 4 pc Capped T seals
    • Aftermarket seal kit
