    R160-7 Hyundai Excavator Boom Cylinder Seal Kit 31Y1-20430 R160LC-7 R160LC-7A

    Ask Lasest Price
    Brand Name : YNF
    Model Number : 31Y1-20430
    Certification : CE
    Price : contact our sales
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 5000 pcs per month
    Delivery Time : 3 working days
    MOQ : 1 Piece
    • Product Details
    • Company Profile

    R160-7 Hyundai Excavator Boom Cylinder Seal Kit 31Y1-20430 R160LC-7 R160LC-7A

    R160-7 Hyundai Excavator Boom Cylinder Seal Kit 31Y1-20430 R160LC-7 R160LC-7A

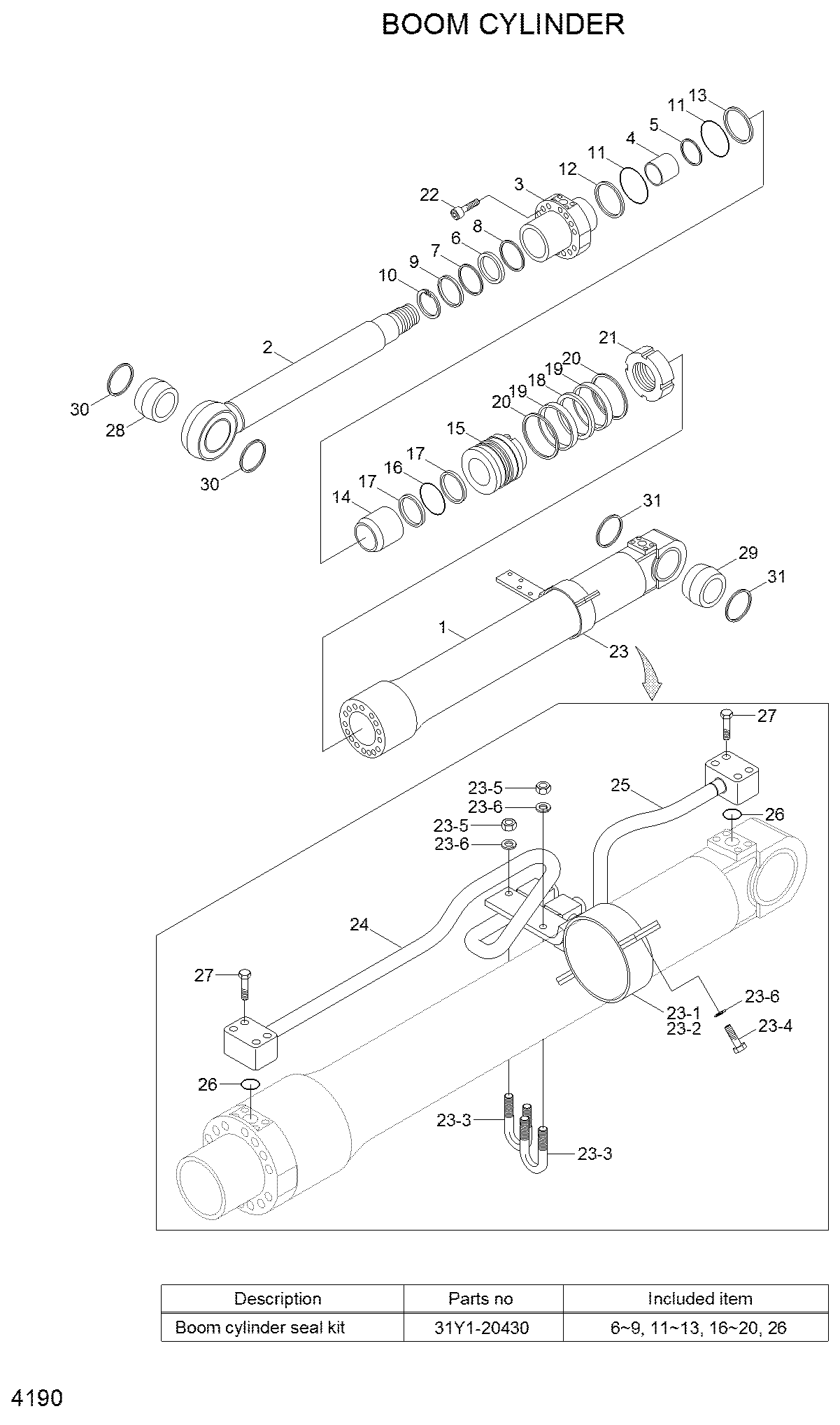

    Parts on group BOOM CYLINDER:

    Pos. Part No Qty Parts name Comments
    *. 31N5-50110 [1] CYLINDER ASSEMBLY,LH
    *. 31N5-50120 [1] CYLINDER ASSEMBLY,RH
    *-1. 31Y1-20380 [1] BOOM CYL SUB ASSEMBLY WITHOUT PIPE
    1. 31Y1-20350 [1] TUBE ASSEMBLY
    2. 31Y1-04090 [1] ROD ASSEMBLY
    3. 31Y1-04120 [1] GLAND
    4. S732-080040 [1] BUSHING
    5. Y191-086000 [1] RING-SNAP
    K6. Y200-080011 [1] SEAL-ROD
    K7. Y180-080020 [1] RING-BACK UP
    K8. Y240-080011 [1] RING-BUFFER
    K9. Y110-080011 [1] WIPER-DUST
    10. Y190-094000 [1] RING-SNAP
    K11. S631-105004 [2] O-RING
    K12. S641-105002 [1] RING-BACK UP
    K13. S641-105003 [1] RING-BACK UP
    14. 31YC-21050 [1] RING-CUSHION
    15. 31Y1-03660 [1] PISTON
    K16. S632-070004 [1] O-RING
    K17. S642-070003 [2] RING-BACK UP
    K18. Y420-115000 [1] SEAL-PISTON
    K19. Y310-115000 [2] RING-WEAR
    K20. Y440-115000 [2] RING-DUST
    21. 31YC-61050 [1] NUT-LOCK
    22. S109-180604 [9] BOLT-SOCKET
    28. 31YC-11075 [1] BUSHING-PIN
    29. 31YC-11085 [1] BUSHING-PIN
    30. S700-075205 [2] SEAL-DUST
    31. Y000-070200 [2] SEAL-DUST
    23. 31Y1-04130 [1] BAND ASSEMBLY-LH
    23. 31Y1-04020 [1] BAND ASSEMBLY-RH
    23-1. 31Y1-04140 [1] BAND SUB ASSEMBLY,LH
    23-1. 31Y1-041R0 [1] BAND SUB ASSEMBLY-RH
    23-2. 31YC-32020 [1] BAND
    23-3. S071-022730 [2] U-BOLT
    23-4. S011-100352 [4] BOLT-HEX
    23-5. S201-101002 [4] NUT-HEXAGON HEAD
    23-6. S411-100002 [8] WASHER-SPRING
    24. 31Y1-20390 [1] PIPE ASSEMBLY-R,LH
    24. 31Y1-20400 [1] PIPE ASSEMBLY-R,RH
    25. 31Y1-20410 [1] PIPE ASSEMBLY-B,LH
    25. 31Y1-20420 [1] PIPE ASSEMBLY-B,RH
    K26. Y171-019004 [2] O-RING
    27. S107-100454 [8] BOLT-SOCKET HEAD
    K. 31Y1-20430 [1] SEAL KIT

    SEE ILLUST

    • MODEL APPLIED: Replacement part boom seal kits 31Y1-20430 for Hyundai R180LC-7 excavator parts
    • MATERIAL PROPERTIES: Resistance to Friction and Wear, Weather Resistance, Oil Resistance, Non-toxic, Safety and Long-Time Uses, High and Low Pressure Resistance.
    • EASY INSTALLATION: YNF excavator seal kit parts are built to OEM specifications and testing. Match your digging excavator machine perfectly!
    • FAST DELIVERY: The R180LC-7 boom Seal kit will be shipped in the fastest way.
    • R160LC-7, R160LC-7A Adj Boom LH Cylinder# 31N5-52911
    • R160LC-7, R160LC-7A Adj Boom RH Cylinder# 31N5-52921
    • R160LC-7, R160LC-7A Boom LH Cylinder# 31N5-50110
    • R160LC-7, R160LC-7A Boom RH Cylinder# 31N5-50120
    • 80mm Rod x 115mm Bore
    • Includes Wiper, U seal, Buffer seal, and 4 pc Capped T seals
    • Hyundai HCE SEAL KIT 31Y1-20430 genuine, new aftermarket tractor parts with delivery
      R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A
