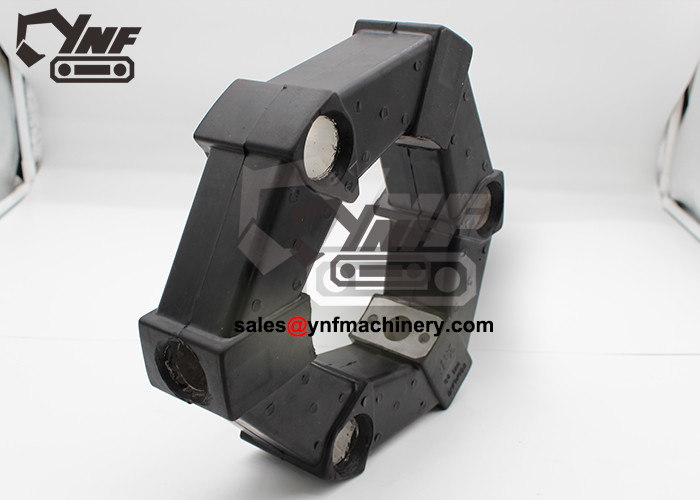

Centaflex Coupling Excavator Parts For Doosan K1022695 Couplings

Description :

Products Show

Packaging & Delivery

Parts imformation:

Pos. Part No Qty Parts name Comments
*. K1022668 [1] SEAL KIT
-. K1022690 [1] PUMP;HST
1. *NA00539 [2]
10. *NA01040 [16] VIS
11. K1022879 [4] BEARING;TAPER ROLLER
12. K1022491 [2] PLATE;THRUST
13. K1022880 [2] CYLINDER BLOCK KIT
14. *NA00074 [2] . BLOCK;CYLINDER
15. *NA01315 [2] RONDELLE
16. *NA01201 [2]
17. *NA01315 [2] RONDELLE
18. *NA00973 [2]
19. K1022490 [8] PIN;HOLD DOWN
2. K1022674 [1] SEAL;UP
20. *NA00921 [2] . HEAD
21. K1022663 [2] GUIDE;RETAINER
22. K1022881 [18] PISTON ASS'Y
23. K1022662 [2] RETAINER
24. K1022676 [2] WASHER;THRUST
25. *NA00476 [2]
26. K1022495 [2] BEARING;NEEDLE
27. K1022675 [2] PIN;SPRING
28. *NA00752 [6] PIN
29. *NA01040 [8] VIS
3. *NA01337 [1]
30. *NA00843 [4] PLUG
31. K1022677 [4] O-RING
32. *NA00843 [4] PLUG
33. K1022678 [4] O-RING
34. *NA01040 [4] VIS
35. *NA00188 [1] SUPPORT
36. *NA00643 [1] . O-RING
37. *NA00643 [1] . O-RING
38. *NA00310 [1]
39. K1022882 [2] PLATE;SWASH
4. K1022670 [2] BEARING;BALL
40. K1022883 [1] SHAFT;FRONT
41. K1022666 [1] VALVE PLATE-RH
42. K1022667 [1] VALVE PLATE-LH
43. *NA00643 [1] . O-RING
44. K1022695 [1] COUPLING
45. *NA00354 [1]
46. K1022500 [1] O-RING
47. K1022681 [1] SHIM KIT
48. K1022884 [1] SPRING
49. K1022503 [1] POPPET;CHARGE RELIEF
5. K1022671 [4] RING;RETAINING
50. K1022696 [1] CAP;END
51. K1022684 [4] SCR VALVE
52. K1022501 [4] O-RING
53. K1022665 [4] O-RING
54. *NA01277 [2]
55. K1022679 [2] SEAL;UP
56. *NA00005 [1] ADAPTEUR
57. *NA01040 [2] VIS
58. *NA01315 [2] RONDELLE
59. K1022685 [1] COUPLING
6. K1022672 [3] RING;RETAINING
60. *NA01076 [1] SEAL
61. *NA00819 [1]
62. *NA01040 [2] VIS
63. K1025475 [1] O-RING
65. K1022697 [1] ROTOR
66. K1022698 [1] SPACER
67. *NA00929 [1] RING
68. K1022699 [1] PIN
69. K1022700 [1] PIN
7. K1022673 [1] SHAFT;REAR
70. *NA01040 [4] VIS
71. *NA00843 [1] PLUG
72. *NA00843 [3] PLUG
73. *NA00643 [3] . O-RING
8. K1022660 [4] O-RING

Products instruction:

Basic requirements for elastic coupling performance: 1. Large bearing capacity and sufficient strength. The maximum allowable torque of the coupling is required to be more than 3 times the rated torque. 2 It has a strong compensation (radial, angular, axial) effect, and the smaller the reaction force generated during the deviation compensation, the better. 3 It has high elasticity and high flexibility, which can reduce the amplitude of shock and vibration to the allowable range, and should have the function of slowing vibration and shock in the direction of rotation. 4. Reliable work and stable performance. Couplings requiring rubber elastic elements should also have good heat resistance, not easy to age, and have a long service life. 5. The coupling must have an insulation resistance of more than 100 ohms and can withstand a voltage of 2kV. 6Easy to install, maintain and replace.

Company information:

Guangzhou XIEBAGN MACHINERY CO., LIMTED

specialized in:

couplings, rubber mounts, gera parts, hydraulic seals and seal kits for hydraulic hammers, rock breakers, hydraulic excavators,wheel loaders, and JCB badkhoe loaders.

And, Our company also supply:

Engine parts, hydraulic piston pump and hydraulic travel motor, Swing motor assembly and hydraulic component parts, electric parts, etc. Hydraulic hammer breaker parts with piston, cylinder, chisel, through bolt, side bolt, top bush, front head bushing,accumlator, valve, etc.

We always try our best for all our customers and make it better and better. Welcome!
