Excavator Pump Coupling Durable Excavator Coupling Fits John Deere 200CLC

Description :

Products Show

Packaging & Delivery

More Parts Information:

Pos. Part No Qty Parts name Comments
0. 9195235 [1] Hydraulic Pump FOR SOUTH AMERICA
0. 9195235EX [1] Hydraulic Pump Reman REMAN FOR 9195235
1. ........ [1] Housing (SUB FOR (1) TH1027184)( 1027184 NLA)
3. 3063840 [1] Gear SUB FOR AT202414
4. 3055594 [1] Shaft SUB FOR AT202412
5. ........ [1] Housing (PUMP UNIT) (SEE FOLLOWING PAGE FOR COMPONENTS)
6. 8058352 [1] Gasket (K) SUB FOR AT214350
7. 19M7489 [6] Cap Screw M16 X 45
8. JD8514 [2] Ball Bearing
9. 962002 [1] Snap Ring SUB FOR TH100483
10. 40M7090 [1] Snap Ring
13. 37H99 [2] Screw 0.100" X 1/4"
18. 12H294 [6] Lock Washer 5/8"
20. 9218005 [1] Pump COMPONENTS ON SEPARATE PAGE SUB FOR 4276918
20. A811085 [1] O-Ring
21. 19M8337 [2] Screw M10 X 30
22. 12M7135 [2] Lock Washer 10 MM SUB FOR 12M6791
23. 4114402 [2] Washer 10.500 X 22 X 3.200 MM (0.413" X 0.866" X 0.126") SUB FOR TH102181
27. 4369148 [1] Oil Line SUB FOR AT214046
30. 3063842 [1] Gear SUB FOR AT202415
31. 3063843 [1] Gear SUB FOR AT202416
32. AT152406 [2] Snap Ring SUB FOR AT203647, 4274552
34. 34M7061 [2] Spring Pin 8 X 20 MM
43. 4310055 [1] Seal (K) SUB FOR AT202443
44. 40M7090 [1] Snap Ring
51. 4293950 [2] Fitting SUB FOR AT160584
51A. M800650 [1] Packing (K)

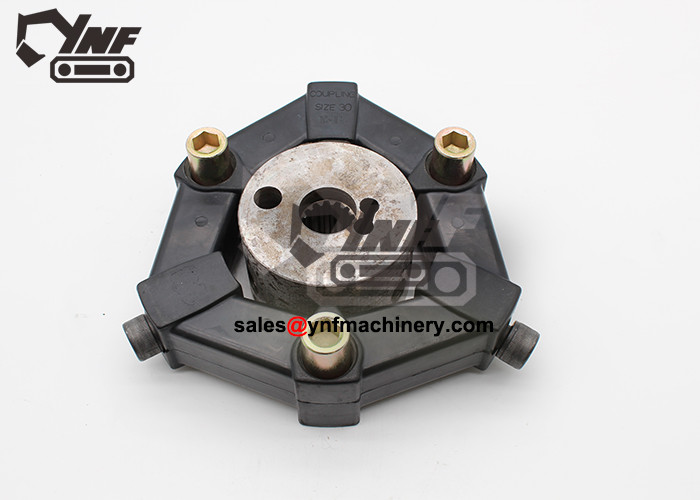

59. FYB00000114 [1] Coupling SUB FOR 4416605; USE WITH 2036807 OR 2043207
59A. 4702172 [1] Hub SUB FOR 4463992 OR 4687331; ALSO ORDER (2) 4702173
59B. ........ [2] Set Screw SUB FOR AT203651 OR 4334899; USE WITH 4463992 OR 4687331 ; SUB 4702173; ALSO ORDER 4702172; 4334899 NLA
59B. 4702173 [2] Set Screw USE WITH 4702172
59C. 34M7117 [4] Spring Pin 5 X 10 MM
59D. 4463993 [4] Insert SUB FOR TH4463993
59E. 4334894 [4] Bolt SUB FOR TH4334894
59F. 4654760 [1] Coupling ELEMENT SUB FOR 4463994
61. 4438059 [1] Dipstick SUB FOR TH4438059
62. 9743977 [1] Dipstick Tube SUB FOR AT214406
63. 9742779 [1] Gasket (K) SUB FOR AT214401
64. 19M7647 [2] Screw M8 X 16 SUB FOR AT217709
68. 4265372 [1] Sensor SUB FOR AT154297
69. 4306888 [1] O-Ring (K) 18.771 X 1.778 MM (0.739" X 0.070") SUB FOR AT154310
70. 24M7054 [1] Washer 6.400 X 12 X 1.600 MM
71. 19M8553 [1] Screw M6 X 16
86. 4234782 [1] Plug SUB FOR AT200990
87. 15M7036 [1] Drain Plug SUB FOR 0309805; SUB FOR 4092534 AND CH11570
87A. CH11570 [1] O-Ring (K) 13.800 X 2.400 MM (0.543" X 3/32")
90. 4451036 [1] Seal Kit SUB FOR TH4451036

Coupling Information:

The function of the coupling is to connect the two shafts (the driving shaft and the driven shaft) in different mechanisms to make them rotate together and transmit torque. Some couplings also have buffering and vibration reduction.
According to different working conditions, the coupling needs to have the following properties:
(1) Portability. The mobility of the coupling refers to the ability to compensate for the relative displacement of the two rotating components. Factors such as manufacturing and installation errors between connected components, temperature changes during operation, and deformation under load all place requirements on portability. Movable performance compensates or relieves additional loads between shafts, bearings, couplings and other components due to relative displacement between rotating components.
(2) Buffering. For occasions where frequent load starts or working load changes, the coupling needs to have elastic elements for buffering and vibration damping to protect the prime mover and the working machine from being damaged or not damaged.
(3) Safe, reliable, with sufficient strength and service life.
(4) Simple structure, convenient assembly and disassembly and maintenance. Couplings are also called couplings. A mechanical component used to firmly connect the driving shaft and the driven shaft in different mechanisms to rotate together and transmit motion and torque. Sometimes it is also used to connect shafts and other parts

Guangzhou XIEBAGN MACHINERY CO., LIMTED

specialized in:

couplings, rubber mounts, gera parts, hydraulic seals and seal kits for hydraulic hammers, rock breakers, hydraulic excavators,wheel loaders, and JCB badkhoe loaders.

And, Our company also supply:

Engine parts, hydraulic piston pump and hydraulic travel motor, Swing motor assembly and hydraulic component parts, electric parts, etc. Hydraulic hammer breaker parts with piston, cylinder, chisel, through bolt, side bolt, top bush, front head bushing,accumlator, valve, etc.

We always try our best for all our customers and make it better and better. Welcome!

Your Trusted Excavator Parts Supplier – Manufacturer & One-Stop Sourcing Solution

Looking for a reliable supplier of excavator parts? Whether you need OEM services or a complete range of parts, we provide the best solutions for your business. As both a manufacturer and trading company, we combine factory-direct prices with the convenience of one-stop sourcing, ensuring that you get high-quality parts at competitive prices.

At YNF Machinery, we specialize in excavator rubber parts and a wide range of excavator components. Our extensive experience and commitment to quality make us a trusted partner for distributors, wholesalers, and repair shops worldwide.

Why Choose YNF Machinery?

We are not just another supplier—we are your long-term partner for excavator parts. Here’s why businesses worldwide choose us:

✅ Largest Excavator Rubber Parts Factory in Southern China

Our factory is the biggest excavator rubber parts manufacturer in southern China. This means:
✔ Lower production costs, allowing you to increase your profit margins
✔ Reliable and stable supply, ensuring you get the parts you need, when you need them
✔ Consistent quality control, reducing the risk of defective products

✅ Thousands of Products & Multiple Quality Levels

We offer a comprehensive range of excavator parts, covering various brands and models.
✔ Choose from thousands of product lines
✔ Select from different quality levels to suit your market demands
✔ Always find the right part, reducing time spent searching for suppliers

✅ Expanding Global Network – 16+ Agents in China & Growing

We have over 16 agents across China and are actively expanding our global presence.
✔ Looking for distributors and agents worldwide—let’s grow together!
✔ Support with marketing, logistics, and product knowledge
✔ Long-term partnership opportunities with exclusive benefits

✅ 30+ Years of Industry Expertise

With decades of experience, we understand the excavator parts market inside out.
✔ Established reputation for reliability and professionalism
✔ Knowledgeable team to help you find the right parts quickly
✔ Expertise in OEM manufacturing, making custom parts to your specifications

✅ OEM Services & Customization

Looking to develop your own brand or need custom parts? We’ve got you covered!
✔ Our own factory can manufacture parts based on your designs and specifications
✔ We provide custom branding options to help you build your business
✔ From rubber parts to metal components, we can customize everything you need

✅ Office & Showroom in Guangzhou – Convenient Logistics

Our Guangzhou office and showroom allow for easy business meetings and fast shipping.
✔ View and inspect products before ordering
✔ Quick access to major ports for efficient global shipping
✔ Dedicated customer support team to assist with orders and inquiries

What Excavator Parts Do We Offer?

We cover all major excavator brands, including Caterpillar, Komatsu, Hitachi, Volvo, Kobelco, Doosan, Hyundai, JCB, Kubota, and more. Our product range is designed to keep your machines running efficiently and reduce downtime.
